Ethernet Cat6a cable with smaller bending radius and flexibility
Cable Application:
-Ethernet Backbone
-Digital Video Systems
-Avionics Network
-Cabin/Flight Management Systems
-Cabin/Flight Entertainment Systems
| Item | Specification |
| Impedance | 100±10 Ω |
| Delay | 4.1 ns/m nom. |
| Capacitance | 41 pF/m nom. |
| Insulation resistance | ≥ 1500 MΩ.Km |
| Conductor DC resistance | ≤ 143 Ω/Km @ 20 ℃ |
| Witdstand voltage | AC1500V(Leakage current < 5 mA) |

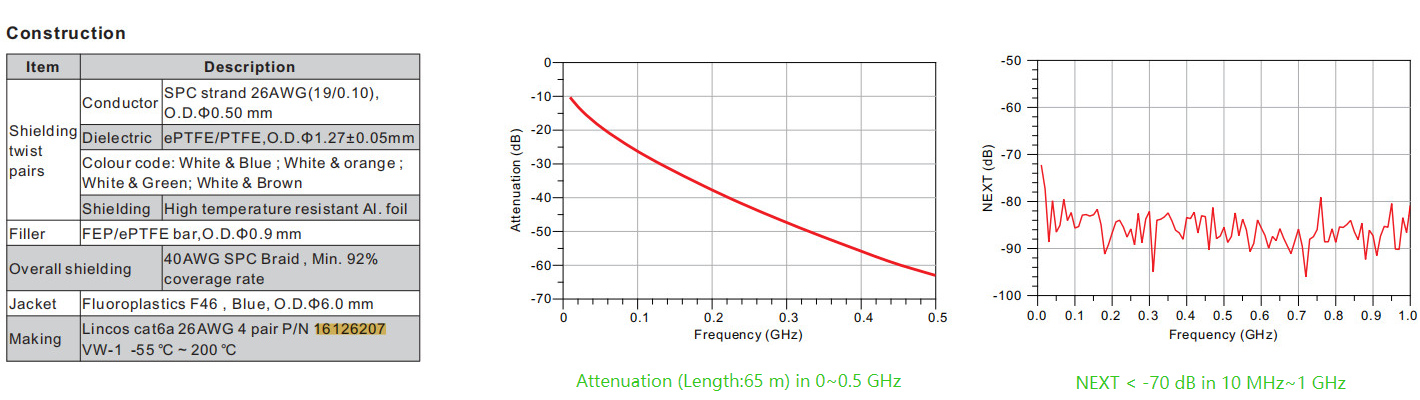

| Attenuation (Maximum) | |
| 10GHz | 5.9 dB/65m |
| 20GHz | 8.4 dB/65m |
| 25.0GHz | 9.4 dB/65m |
| 62.5GHz | 15.0 dB/65m |
| 100GHz | 19.1 dB/65m |
| 200GHz | 27.6 dB/65m |
| 250GHz | 31.1 dB/65m |
| 300GHz | 34.3 dB/65m |
| 400GHz | 40.1 dB/65m |
| 500GHz | 45.3 dB/65m |
| 近端串扰 | < -70 dB @ 10 MHz~1 GHz |
| Maximum Weight | 53.0 g/m |
| Min. Bend radius | 45.0 mm |
| Operating temperature | -55 ℃ ~ 200 ℃ |
This Cable meets TIA5 68C.2 CATEGORY 6A Requirement up to 65 meters
This Cable meets ROHS 2011 /65/EU
